- Continuous torque sensing capability:
Provides real-time torque measurements, ensuring accurate and consistent data throughout your tests.
- High Torque Measurement Accuracy:
Achieve precision with a torque measurement accuracy of 1% of the full-scale range, delivering reliable results every time.
- Exceptional Repeatability:
Benefit from a repeatability of 0.2% of the full-scale range, ensuring consistent performance across multiple tests.
- Easy Speed Adjustment and On/Off Control:
Simplify operation with straightforward speed adjustments and convenient on/off controls, making it easy to tailor settings to your specific needs.
- Compatibility with All Brookfield Accessories:
Enjoy versatility with full compatibility across the Brookfield accessory range, enhancing the instrument's functionality.
- NIST Traceable Viscosity Standards Available:
Ensure your measurements are accurate and compliant with industry standards, with viscosity standards traceable to NIST.
- Quiet, Reliable Operation:
The electronic drive system guarantees quiet and dependable operation, minimizing disruptions in your workspace.
- Traditional Brookfield Quality:
Trust in the long-standing reputation of Brookfield instruments, known for their durability and superior performance.

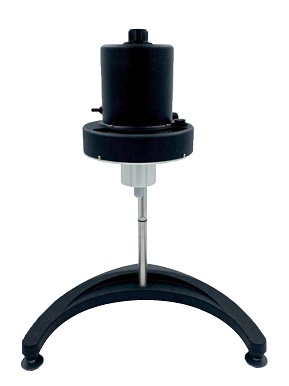

- Instrument: Dial Reading Viscometer
- Spindles: 6 spindles (RV/HA/HB) or 4 spindles (LV)
- Spindle Guard Leg*: Stabilizes the spindle during viscosity assessments
- Lab Stand: Model G for stable testing
- Carrying Case: For easy transport and protection of the instrument
*Not applicable to HA or HB models
TORQUE RANGE AND EXPLANATIONS:
- LV (Low Viscosity):
Ideal for low viscosity materials such as inks, oils, and solvents.
- RV (Medium Viscosity):
Suitable for medium viscosity materials like creams, foods, and paints.
- HA (High Viscosity):
Designed for higher viscosity materials including gels, chocolate, and epoxies.
- HB (Very High Viscosity):
Best for very high viscosity materials such as asphalt, caulking compounds, and molasses.
SPECFICATIONS:
- LVT Model:
- Viscosity Range: 1 cP † to 2M cP (mPa·s)
- RPM Range: 0.3 - 60
- Number of Speed Increments: 8
- RVT Model:
- Viscosity Range: 100 cP †† to 8M cP (mPa·s)
- RPM Range: 0.5 - 100
- Number of Speed Increments: 10
- HAT Model:
- Viscosity Range: 200 cP †† to 16M cP (mPa·s)
- RPM Range: 0.5 - 100
- Number of Speed Increments: 10
- HBT Model:
- Viscosity Range: 800 cP †† to 64M cP (mPa·s)
- RPM Range: 0.5 - 100
- Number of Speed Increments: 10
Spring Torque
- LVT Model:
- Dyne-cm: 673.7
- Milli Newton-m: 0.0673
- RVT Model:
- Dyne-cm: 7,187.0
- Milli Newton-m: 0.7187
- HAT Model:
- Dyne-cm: 14,374.0
- Milli Newton-m: 1.4374
- HBT Model:
- Dyne-cm: 57,496.0
- Milli Newton-m: 5.7496
Notes:
- † 1 cP achieved with UL Adapter accessory. 15 cP on LVT with standard spindles.
- †† Minimum viscosity is achieved with optional RV/HA/HB spindle.
- M = 1 million cP (Centipoise); mPa·s = Millipascal·seconds
- B = 1 billion
