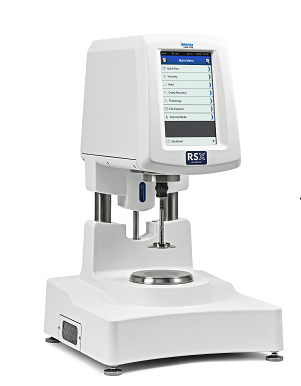

RSX Cone Plate Rheometer

RSX Cone Plate Rheometer: Precision in Rheological Analysis

Advanced Rheometer for Controlled Shear Rate and Stress Measurements

AMETEK Brookfield RSX Cone Plate Rheometer is designed for precise, controlled shear rate (rpm) and controlled shear stress (torque) measurements. With its advanced features and user-friendly design, the RSX Cone Plate Rheometer is ideal for both sophisticated rheological analysis in R&D environments and straightforward quality control testing.

Controlled Shear Stress/Shear Rate Operation:
Precisely analyze flow behavior with controlled shear stress and shear rate settings, ideal for detailed rheological studies.
Large User-Friendly Touch Screen:
Navigate test parameters easily with an intuitive touch screen interface, enhancing user experience and operational efficiency.
Quick Connect Coupling System:
Simplify spindle attachment with a quick connect system, reducing setup time and ensuring secure connections.
Auto Spindle Recognition:
The spindle barcode feature automatically recognizes and sets the correct spindle, streamlining the testing process and ensuring accuracy.
Automatic Spindle Gap Setting:
Automatically detects and adjusts the spindle gap with standard one-piece spindles, eliminating manual adjustments and ensuring precise measurements.
Small Sample Size:
Conduct tests with minimal sample volumes, allowing for rapid setup and cleanup, making it ideal for labs with limited sample availability.
Rapid Temperature Control:
Achieve fast and accurate temperature regulation with Peltier or fluid-heated options, ensuring consistent test conditions.
Rugged Design:
Built to withstand the demands of the production floor, providing durability and reliability in harsh environments.
Increased Torque Motor:
Equipped with a powerful 200 mNm torque motor, this instrument is capable of testing tough samples, ensuring comprehensive analysis across a wide range of materials.

Adhesives:
Ensure consistent adhesive properties by accurately measuring viscosity and flow behavior.
Biomass:
Analyze the rheological properties of biomass materials, essential for process optimization.
Food and Beverages:
Measure viscosity and texture to maintain product consistency and quality.
Gypsum:
Test the flow characteristics of gypsum slurries to optimize production processes.
Pharmaceuticals:
Perform critical rheological testing on pharmaceutical formulations to ensure stability and performance
Chemical Production:
Accurately measure the rheological properties of chemical products for quality control.
Paints and Coatings:
Ensure the correct application and performance characteristics of paints and coatings through precise rheological analysis.
Petroleum:
Test the viscosity and flow behavior of petroleum products under various conditions.

Instrument: The main device for performing accurate and reliable measurements.
Power Cord: Essential for powering your instrument and ensuring it is ready for use.
Accessory Kit: A complete set of tools and accessories to support your testing needs.
USB cord: For easy connection to a PC, enabling data transfer and control.
Screen Protector: Protects the touch screen from scratches and wear, ensuring long-term usability.
Bubble Level: Ensures your instrument is perfectly level for precise measurements.
Hose Quick Connects (Fluid Heat only): Facilitates easy connection for fluid heating systems, ensuring quick setup and efficient operation.

**Cone Spindles

RCTO-25-1
- Viscosity Range: 0.1019 – 815K Pa·s
- Shear Rate: 0.06 – 6000 sec⁻¹
- Max. Shear Stress: 48892 Pa
- Sample Volume: 0.1 mL
RCTO-25-2
- Viscosity Range: 0.2037 – 1630K Pa·s
- Shear Rate: 0.03 – 3000 sec⁻¹
- Max. Shear Stress: 48892 Pa
- Sample Volume: 0.2 mL
RCTO-50-1
- Viscosity Range: 0.0127 – 102K Pa·s
- Shear Rate: 0.06 – 6000 sec⁻¹
- Max. Shear Stress: 6112 Pa
- Sample Volume: 1.0 mL
RCTO-50-2
- Viscosity Range: 0.0255 – 204K Pa·s
- Shear Rate: 0.03 – 3000 sec⁻¹
- Max. Shear Stress: 6112 Pa
- Sample Volume: 2.0 mL
RCTO-75-1*
- Viscosity Range: 0.0038 – 30K Pa·s
- Shear Rate: 0.06 – 6000 sec⁻¹
- Max. Shear Stress: 1811 Pa
- Sample Volume: 2.5 mL

RCTO-75-2*
- Viscosity Range: 0.0075 – 60K Pa·s
- Shear Rate: 0.03 – 3000 sec⁻¹
- Max. Shear Stress: 1811 Pa
- Sample Volume: 5.0 mL
  **For use with fluid heated instruments only.

**Plate Spindles

RPTO-25
- Viscosity Range: 0.623 – 4.98 mil Pa·s
- Shear Rate: 0.013 – 1309 sec⁻¹
- Max. Shear Stress: 65190 Pa
- Sample Volume: 0.5 mL
RPTO-50
- Viscosity Range: 0.039 – 311K Pa·s
- Shear Rate: 0.026 – 2618 sec⁻¹
- Max. Shear Stress: 8149 Pa
- Sample Volume: 2.0 mL
RPTO-75*
- Viscosity Range: 0.0077 – 61K Pa·s
- Shear Rate: 0.039 – 3927 sec⁻¹
- Max. Shear Stress: 2414 Pa
- Sample Volume: 4.5 mL

Rheo3000 Software:
Provides advanced data acquisition, control, and analysis capabilities, allowing for comprehensive rheological evaluations.
Cone/Plate and Plate/Plate Spindles:
Tailor your testing setup with a variety of spindle options to accommodate different sample types and testing requirements.
Thermal Barrier:
Reduces the effects of heat transfer, ensuring more consistent temperature control during testing.
Circulating Temperature Bath:
Enhances temperature stability for samples requiring precise thermal management.
