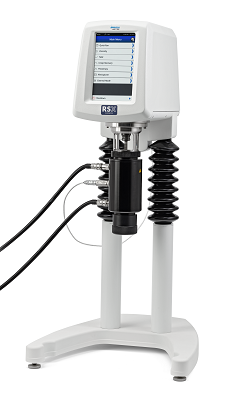

RSX Coaxial Cylinder Rheometer

rsx cc

The RSX Coaxial Cylinder Rheometer is AMETEK Brookfield’s latest, full-featured rheometer, offering superior viscosity profiling, thixotropic response, yield stress determination and creep analysis. A wide range of shear rate, shear stress, and torque provide flexible flow analysis including creep and yield measurement.

The RSX-CC Rheometer is designed to accommodate the high throughput required of quality control laboratories providing cost-effective, worry-free operation for a variety of laboratory applications.








FEATURES AND BENEFITS
  • Controlled shear stress/shear rate operation to analyze comprehensive flow behavior
  • Large user-friendly touch screen
  • Quick connect coupling system for easy spindle attachment
  • Spindle barcode for auto spindle recognition
  • Very small sample size for rapid test setup and cleanup
  • Rugged design for use on production floor
  • Increased torque motor for testing tough samples
  • Motorized stand for easy height selection
  • Temperature control from -20°C to 180°C with choice of direct immersion in bath or external circulation using the FTKY3 water jacket
<
Br>
  • Overview +


    What’s Included
    • Instrument
    • Power supply
    • Screen protector with cleaning cloth
  • Specifications +


    RSX Specifications (all models)
    TORQUE/SPEED: 0.1-200 mNm/0.01-1,000 rpm
    0.1-100 mNm/0.01-1,300 rpm (optional)
    TORQUE RESOLUTION: 1.2µNm
    DISPLAY: 7 in.
    VERSIONS AVAILABLE: CPS, SST, CC
    DISPLAY UNITS: cP, Pa•s, dynes/cm2,Pa, °C, °F


  • Optional Accessories +

  • Downloads +
